HPK Adhesive Panel Labels (HPK)
APPLICATIONS
Impact, Inc.’s Panel Labels are pressure sensitive adhesive backed labels used to permanently identify control panel components and racks. Impact, Inc.’s Panel Labels will adhere to most smooth surfaces including bare and painted metal.
USE
- Place HPK Panel Labels in a thermal transfer printer
- Use AWMS software to print product
- No need to permatize
Remove from the carrier sheet
Place firmly onto clean surface.
PRODUCT
- Manufactured from polypropylene film with white topcoat and permanent pressure sensitive adhesive acrylic
- Operates at temperature from -20º F to 176º F (-29º C to 80º C)
- No permatizing required
Resistant to common fluids, lubricants, and solvents
DESCRIPTION: Impact, Inc’s “HPK” Panel Labels are top coated thermal transfer printable white polypropylene film coated with a permanent pressure sensitive acrylic adhesive and backed with a 50lb semi bleached Kraft release liner.
PRINT METHOD: Thermal Transfer
ADHESIVE: Permanent acrylic
COLOR: White
EXPECTED EXTERIOR LIFE: Indoor use only
SERVICE TEMPERATURE:
-20 ° F to 176 ° F (-29 ° C to 80 ° C)
MINIMUM APPLICATION TEMPERATURE:
50 ° F (10 ° C)
STORAGE:

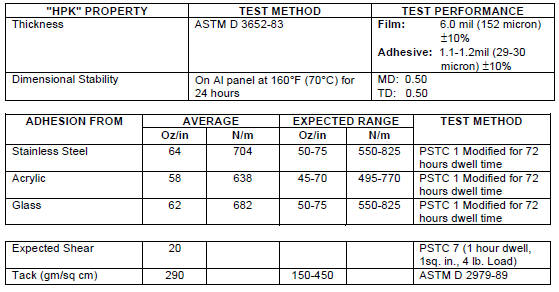

Two years when stored at 70 ° F (21 ° C) and 50% RH imag003.jpg
WARRANTY: Impact, Inc. recommends that a selected label type be thoroughly tested to insure it meets all end user requirements. Impact, Inc. warrants only the purchaser that its products are free from defects in material and workmanship. Impact, Inc. limits its obligation under this warranty and at its option to repair or replace the product. This warranty is in lieu of any other warranty, expressed or implied, including, but not limited to, any implied warranty of merchantability or fitness for a particular purpose. Impact, Inc. is not liable for any damages, including lost profits, lost savings or other incidental or consequential damages arising out of the use of or inability to use such products.
